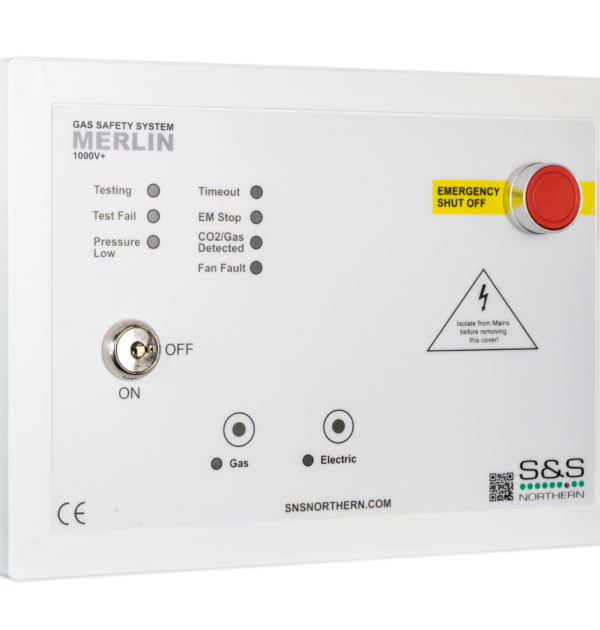

Merlin 1000V+
Gas Proving & Electric

The Merlin 1000V+ Laboratory Utility Controller is designed specifically for use in School and University Laboratories. This panel is to be used to carry out a gas proving test on the pipe work in order to highlight if there is a gas appliance open or a gas leak in the laboratory. The Merlin 1000V+ is designed to give the teacher full control over the incoming gas supply and bench electrics with the lockable main key-switch and touch sensors.

The Merlin 1000V+ can work in conjunction with carbon dioxide, natural gas, carbon monoxide and LPG sensors. The Merlin 1000V+ also has a built in “timeout” facility which will automatically shut off the gas solenoid valve at the end of a specific time period, this time period can be adjusted to 2, 4, 8 hours or can be overridden if required.

• Can work in conjunction with a Merlin CO2 Monitor.
• Protects people and property by testing for leaks before allowing the gas on.
• Reliable method of pressure proving using the gas pressure transducer.
• Key switch and touch sensors gives teacher full control of both gas supply and bench electrics.
• Quick proving test, typically 30 seconds from switch on to ready for use.
• Time out facility protects the building out of hours
• Low pressure indication, continual monitoring of gas pressure.
• Clear LED display for system indications.
• Compatible with both BMS and fire alarm systems.
• Straightforward to install and calibrate, the Merlin 1000V+ can be easily adjusted to the user’s requirements.
• Covered by Oceania Gas Safety 3 year warranty.

• Height –  178mm
• Width – 254mm
• Depth –   62mm
